Medical High Definition Inspection Camera HDMI CVBS SDI Digital Endoscope Camera

Markenname:	SNUKE
Modellnummer:	LN-C703LU
MOQ:	1
Verpackungsdetails:	Karton
Zahlungsbedingungen:	T/T

Ausführliche Information

Produktbeschreibung

Ausführliche Information

Herkunftsort:

China

Zertifizierung:

Auflösung:

3840x2160P (4K)

Bildrate:

60fps

Sensortyp:

Sony CMOS

Videoausgänge:

HDMI, CVBS, SDI, DVI

Anzeigegröße:

10.1-Zoll-LCD

Lichtquelle:

800-2600LM

Farbtemperatur:

3000-7000k

Stromverbrauch:

Betriebstemperatur:

-40°C zu 50°C

Hauptfunktionen:

Bildgebung, Aufnahme, Wiedergabe

Versorgungsmaterial-Fähigkeit:

Hervorheben:

Medical high definition inspection camera

HDMI high definition inspection camera

CVBS digital endoscope camera

Produktbeschreibung

LN-C703LU 4K Endoscope Camera System with Vascular Enhancement | Snuke Medical

Discover the LN-C703LU 4K endoscope camera system featuring 4K60FPS video, SONY CMOS sensor, vascular enhancement, and noise reduction. Ideal for ENT and surgical procedures.

Product Overview

The LN-C703LU 4K Video Camera System by Snuke Medical represents the pinnacle of endoscopic imaging technology. Engineered with a superior SONY CMOS sensor, this system delivers stunning 4K60FPS resolution for unparalleled clarity during medical procedures. Specifically designed for rigid endoscopes, it incorporates advanced vascular enhancement and noise reduction algorithms to provide surgeons with crystal-clear visualization. The innovative chassis design sets new standards in medical equipment aesthetics while maintaining full functionality.

Quick Preview Table

*Use this table to quickly determine if the LN-C703LU matches your requirements*

Feature	Specification
Maximum Resolution	4K UHD (3840x2160) 60FPS
Sensor Technology	SONY CMOS
Recording Quality	1080P 60FPS
Vascular Enhancement	Intelligent Algorithm
Noise Reduction	Advanced DNR System
Scope Compatibility	Rigid Endoscopes Only
Chassis Design	Innovative & Unique
Primary Functions	Imaging, Recording, Playback

Technical Features

Advanced Imaging Performance

4K Ultra HD resolution at 60FPS ensures exceptionally smooth and detailed visuals
SONY CMOS sensor provides superior color accuracy and light sensitivity
Single CMOS technology delivers performance equivalent to 3CMOS systems

Smart Visualization Tools

Vascular enhancement algorithm automatically detects and highlights blood vessels
Configurable noise reduction settings for optimal image clarity
Real-time image processing with multiple endoscopy modes

System Components

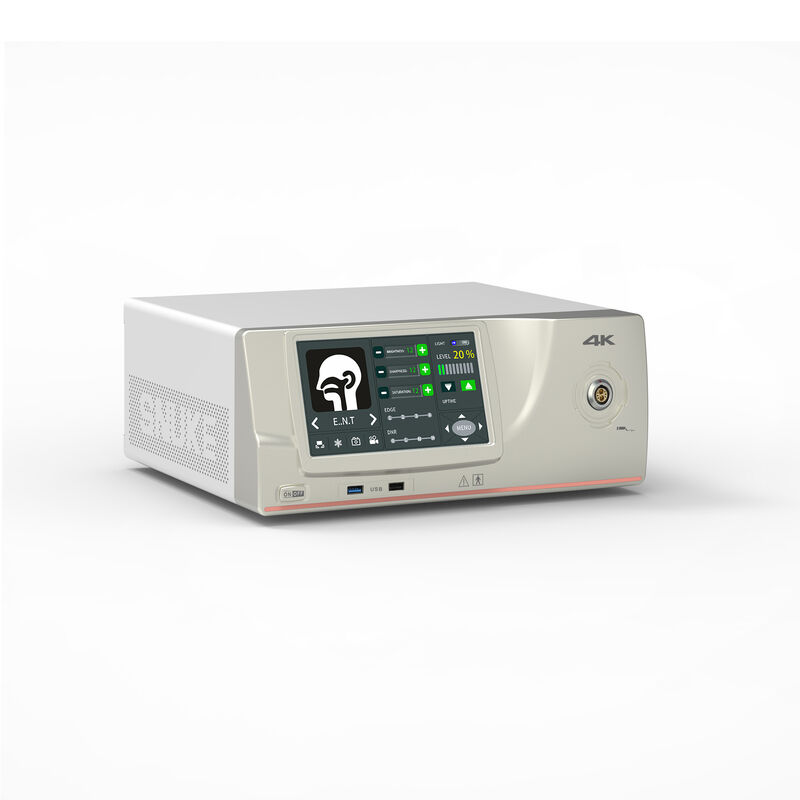

Main Unit: Integrated 10.1-inch display with multiple video outputs
Handle Camera: Ergonomic design with intuitive control buttons
Light Source: Adjustable illumination from 800-2600lm
Connectivity: Comprehensive interface options including HDMI and SDI

Medical Applications

ENT surgical procedures and examinations
Laparoscopic and general surgical interventions
Urological and orthopedic endoscopic procedures
Diagnostic imaging and minimally invasive surgeries

Support & Services

24-month comprehensive warranty coverage
Lifetime maintenance services available
Detailed troubleshooting guidance included
Complete accessory package provided

Technical Specifications

Parameter	Details
Product Model	LN-C703LU
Resolution	3840x2160P (4K)
Frame Rate	60FPS
Sensor Type	SONY CMOS
Video Outputs	HDMI, CVBS, SDI, DVI
Display Size	10.1-inch LCD
Light Source	800-2600lm
Color Temperature	3000-7000K
Power Consumption	100W
Operating Temperature	-40°C to 50°C
Net Weight	6.8kg
Special Features	Vascular enhancement, Noise reduction, Video playback
