Accurate Medical Imaging Flexible Endoscope Camera Intelligent Ear Endoscope 330mm

Nom De La Marque:	Snuke
Numéro De Modèle:	LN-C136LF
MOQ:	1
Conditions De Paiement:	T/T

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

CE ISO

Modèle:

LN-C136LF

Résolutions:

1080P à 30 images par seconde, 720P à 60 images par seconde

Ports de sortie:

HDMI, DVI, VGA, CVBS

Taille d'écran tactile:

6.8 pouces

Dimensions physiques:

330 mm (L) x 215 mm (l) x 110 mm (H)

Garantie:

2 ans

Capacité d'approvisionnement:

Mettre en évidence:

Accurate Flexible Endoscope Camera

Medical Imaging Flexible Endoscope Camera

intelligent ear endoscope 330mm

Description du produit

Discover the Power of Our Flexible Endoscope Camera for Accurate Medical Imaging

(Table 1: Product Quick Facts)

Quick Fact	Detail
Model	LN-C136LF
Max Video Quality	1080P, 30 Frames Per Second
Display Size	13.3 inches
Control Panel	6.8-inch Touch Screen
Built-in Memory	240 Gigabytes
Key Feature	One-Button Recording & Capture

1. Product Overview

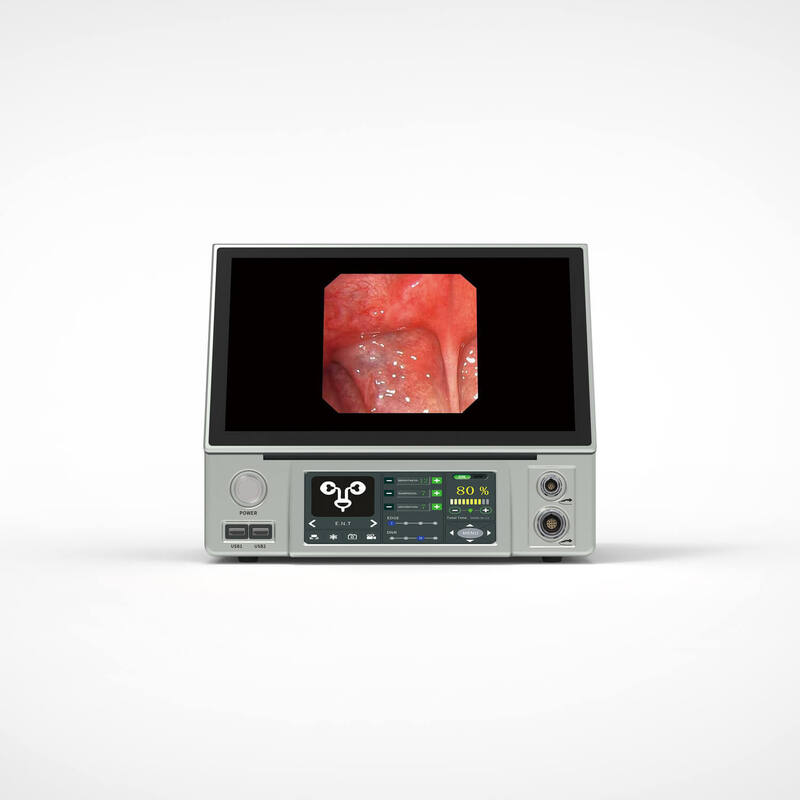

This section provides a summary of the LN-C136LF Flexible Endoscopy Video System. It is an all-in-one medical endoscope camera system that integrates video processing and recording functionalities. The device is built around high-definition imaging technology, showcased on a large 13.3-inch screen, and is controlled via a user-friendly 6.8-inch touchscreen, making it a complete solution for endoscopic imaging needs.

2. Product Technical Highlights

High-Definition Video: The system captures and displays video in 1080P resolution at 30FPS, providing clear and detailed images for medical analysis.
Large, Clear Monitor: The 13.3-inch high-definition screen ensures a bright and detailed view of the endoscopic procedure.
Simple Touchscreen Control: System settings and functions are managed through an intuitive 6.8-inch touch screen interface.
Easy Capture Functions: The hand controller is designed for simple operation: long press for recording, single press for photography.
High-Capacity Storage: An internal 240GB hard drive provides significant space for saving video and photo data directly on the device.

3. Product Applications

The LN-C136LF system is applicable for use in various medical fields requiring internal visualization.

Digestive System Endoscopy
Respiratory Tract Endoscopy
Ear, Nose, and Throat (ENT) Endoscopy
It functions as a primary video system for diagnostic endoscopy procedures.

4. Support & Services

Standard support and services are available for this product. This includes a product warranty, technical support access, and documentation to ensure proper use and maintenance of the LN-C136LF endoscope camera system.

5. Product Technical Parameters

(Table 2: Detailed Product Specifications)

Parameter	Specification
Product Name	Video Processor & Recorder All-In-One
Model	LN-C136LF
Supported Resolutions	1080P @ 30FPS, 720P @ 60FPS
Color Temperature	5200K - 6500K
Storage Options	Internal 240GB HDD, USB External Port
Output Ports	HDMI, DVI, VGA, CVBS
Touch Screen Size	6.8 inches
Foot Switch	Supported
Operating Temperature	-10℃ ~ 50℃
Rated Power	< 36W
Physical Dimensions	330mm (L) x 215mm (W) x 110mm (H)
