SONY CMOS Portable Endoscope Camera One Button Medical Ent Endoscope Camera

Merknaam:	Snuke
Modelnummer:	Ln-hs26_1c
Moq:	1
Betalingsvoorwaarden:	T/T

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst:

China

Certificering:

CE ISO

Model:

Ln-hs26_1c

Sensortype:

Sony CMOS

Video-uitvoer:

1080P, 60FPS

Bedrijfstemperatuur:

-20°C tot 60°C

Garantie:

2 jaar

Levering vermogen:

Markeren:

SONY CMOS Portable Endoscope Camera

Portable Endoscope Camera One Button

Medical ent endoscope camera

Productbeschrijving

Portable Endoscope Camera Portable and Versatile for Various Medical Applications

1.0 Product Overview

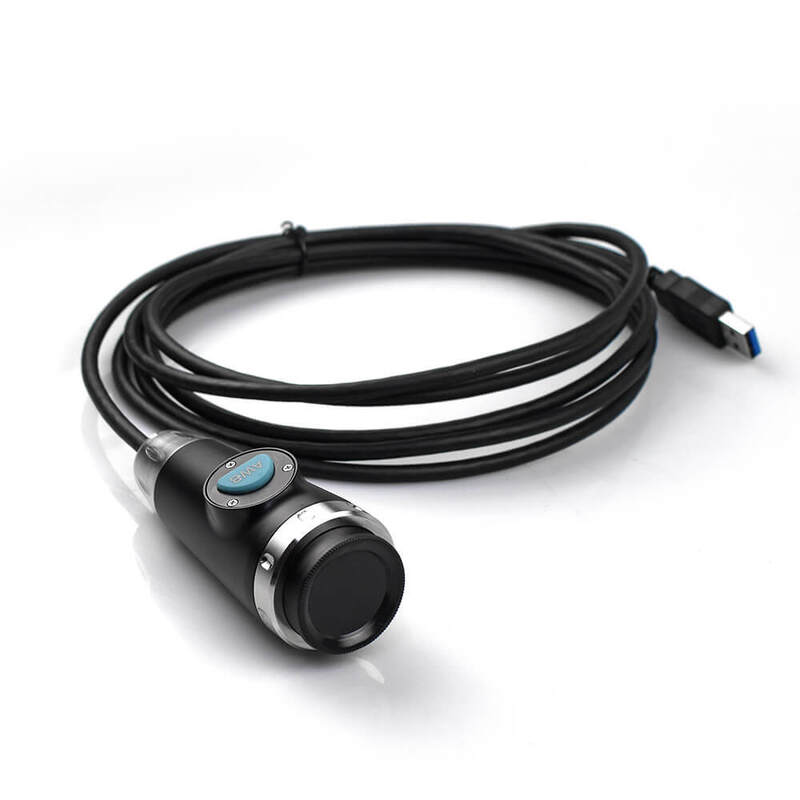

The LN-HS26_1C is a standardized USB 3.0 camera module specifically configured for the medical endoscope industry. It is designed to provide high-definition visual data with a resolution of 1080P at 60 frames per second, facilitated by a reliable SONY CMOS image sensor.

2.0 Product Quick Identification Table

Key Identifier	Specification
Model	LN-HS26_1C
Sensor Type	SONY CMOS
Max. Video Output	1080P, 60FPS
Data Interface	USB 3.0
Video Encoding	MJPG
User Interface	OSD Menu
Convenience Feature	One-Button White Balance
Image Enhancement	Digital Noise Reduction

3.0 Product Technical Highlights

High-Speed Imaging: Captures video at 60 frames per second in 1080P Full HD resolution.
Superior Sensor Technology: Utilizes a 1/2.8-inch SONY CMOS sensor for high-quality image capture with approximately 2.16 million effective pixels.
Efficient Video Output: Supports MJPG video format for a good balance of image quality and data stream size.
On-Screen Display (OSD): Allows for direct configuration of camera settings via a user-friendly menu.
Instant White Balance: Features a dedicated button on the handle for one-touch auto white balance adjustment.
Noise Control: Includes a Digital Noise Reduction (DNR) function to minimize image grain.

4.0 Product Applications

Medical endoscopic equipment.
Diagnostic and surgical procedures requiring internal visualization.
Medical education and training platforms.
Telemedicine and remote diagnostic video systems.

5.0 Support and Services

Technical support is available for all products. The device operates in a plug-and-play manner on most systems with built-in drivers. Additional software tools and documentation can be downloaded from our support portal.

6.0 Product Technical Parameters Table

Category	Specification
General
Model	LN-HS26_1C
Imaging
Image Sensor	1/2.8" SONY CMOS
Effective Pixels	1945 (H) x 1109 (V)
Resolution	1920 x 1080
Frame Rate	60 FPS
Scan System	Progressive
Min. Illumination	0.017 LUX (Color)
Video
Output Format	MJPG, YUV
S/N Ratio	> 42 dB
Interface/Power
Interface	USB 3.0
Power Supply	5V DC via USB
Working Current	250mA ±10mA
Environmental
Operating Temperature	-20°C to 60°C
Functions
Menu Controls	Brightness, AGC, Backlight, AWB, DNR, Sharpness, Mirror/Flip, Defog
OSD Languages	English, Chinese
