Touchscreen Unmatched Clarity digital inspection camera Medical flexible inspection camera

Brand Name:	Snuke
Model Number:	LN-C703MU
MOQ:	1
Packaging Details:	CARTON
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO

Product Name:

All In One Endoscope Camera

Model:

LN-C703MU

Display:

10.1-inch HD Touchscreen

Connectivity:

HDMI, SDI, DVI, CVBS, Dual USB

Product:

Endoscope Camera

Crystal-Clear Surgical View:

True 4K (8MP) Resolution For Incredible Detail.

Feature:

High Definition

Sensor:

SONY CMOS Sensor

Application:

Laparoscopy, Arthroscopy Etc.

Usage:

Medical

Supply Ability:

Highlight:

Touchscreen digital inspection camera

Unmatched Clarity digital inspection camera

flexible inspection camera

Product Description

Experience Unmatched Clarity with All In One Endoscope Camera for Medical

1.0 Product Overview

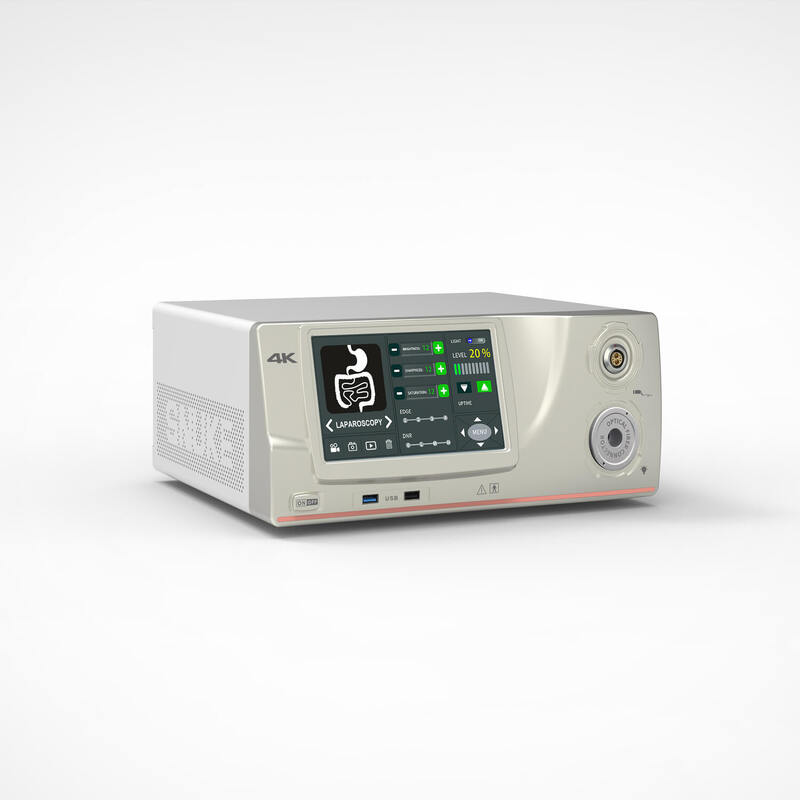

The LN-C703MU is an integrated medical endoscope camera and light source system. It captures 4K 60FPS video using a Sony CMOS sensor and provides powerful LED cold light illumination. This all-in-one unit is designed for high-clarity endoscopic visualization in surgical settings.

2.0 Product Quick Preview

System Component	Primary Feature
Camera	4K 60FPS, Sony CMOS, Dual-Axis Tech
Display	10.1-inch HD Touchscreen
Intelligent Features	Vessel Enhancement, Noise Reduction
Light Source	Integrated 100W LED, 800-2600 lm
Connectivity	HDMI, SDI, DVI, CVBS, Dual USB

3.0 Product Technical Features

3.1 Camera System Specifications

Image Resolution: 4K Ultra HD (3840x2160) at 60 FPS.
Core Sensor: High-quality Sony CMOS.
Color Technology: Proprietary dual-axis processing for 3CMOS-like image quality from a 1CMOS sensor.
Smart Imaging Functions:
- Vessel Enhancement Mode for improved vessel delineation.
- Configurable Noise Reduction for optimal image clarity.
User Interface: 10.1-inch high-resolution touch panel for control and viewing.

3.2 Light Source System Specifications

Type: Integrated LED Medical Cold Light Source.
Luminous Flux: Adjustable from 800 to 2600 lumens.
Brightness Control: Digital adjustment from 0 to 100.
Power & Longevity: 100W rating with a service life exceeding 60,000 hours.

4.0 Product Applications

Primary use cases for the LN-C703MU system include:

General Laparoscopy
Arthroscopic Surgery
Otorhinolaryngology (ENT) Surgery
Gynecological Endoscopy
Urological Endoscopy

5.0 Product Support & Service

Standard support package:

Product documentation and operational guides
Remote technical troubleshooting
Hardware warranty
Software and firmware update support

6.0 Product Technical Parameters

Specification Group	Item	Value
General	Model	LN-C703MU
Imaging	Resolution	4K 60FPS
	Sensor	Sony CMOS
Display	Screen	10.1 inch Touch-panel
Output/Storage	Output Interface	4K HDMIx2 / SDI / DVI / CVBS
	Video Storage	USBx2 (up to 2TB)
	Foot Switch	Support Photo
Light Source	Luminous Flux	800-2600 lm
	Brightness	0-100
	Light Source Power	100W
	Service Life	≥60000 hours
Physical	Dimension	L340W325H140mm
