4K Endoscope Camera

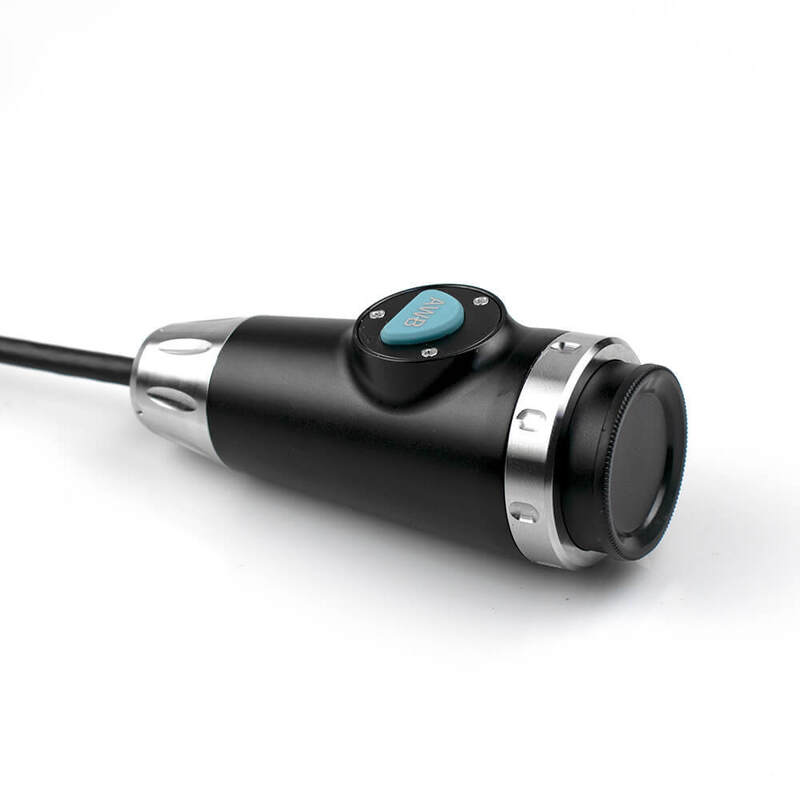

1/2.8" 4K Endoscope Camera SONY CMOS USB Endoscope Camera

All Category

Irrigation Pump

Mr. Sean

sean@snuke.com.cn

+86 18025467280

Sean-SnukeMedical

Contact Now

1/2.8" 4K Endoscope Camera SONY CMOS USB Endoscope Camera

Brand Name:	Snuke
Model Number:	LN-HS26_1C
MOQ:	1
Packaging Details:	CARTON
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO

Model:

LN-HS26_1C

Image Sensor:

1/2.8" SONY CMOS

Video Output:

MJPG, YUV

Power Supply:

DC 5V

Operating Temperature:

-20°C To 60°C

Warranty:

2 Year

Product:

Endoscope Camera

Crystal-Clear Surgical View:

True 4K (8MP) Resolution For Incredible Detail.

Feature:

High Definition

Sensor:

SONY CMOS Sensor

Application:

Laparoscopy, Arthroscopy Etc.

Usage:

Medical

Supply Ability:

Highlight:

4k endoscope camera sony cmos

4k endoscopic tower

sony cmos endoscopic tower

Product Description

USB Endoscope Camera for Medical Imaging High-Performance Visuals with Advanced Technology

Product Overview

The LN-HS26_1C is a high-performance USB3.0 medical endoscope camera designed for clarity and reliability in clinical environments. It delivers superior 1080P resolution at 60 frames per second, ensuring smooth, real-time video crucial for accurate medical examinations. Equipped with a premium SONY CMOS sensor, this camera offers exceptional image quality, making it an essential tool for various endoscopic procedures.

Quick Preview Table

Feature Category	Specification Summary
Model	LN-HS26_1C
Sensor	1/2.8" SONY CMOS
Resolution & Frame Rate	1080P @ 60FPS
Video Output	MJPG, YUV
Key Features	One-Touch White Balance, OSD Menu, Noise Reduction (DNR)
Connectivity	USB 3.0
Primary Use	Medical Endoscopy

Product Technical Highlights

Experience unparalleled image fidelity with the LN-HS26_1C's 2MP SONY CMOS sensor, capturing crisp 1080P video at a fluid 60FPS. The MJPG video format ensures efficient compression without sacrificing quality. The intuitive OSD menu allows for easy on-screen adjustments, while the handle-mounted one-touch white balance (AWB) button guarantees accurate color representation instantly. Advanced Digital Noise Reduction (DNR) technology significantly minimizes video noise, providing a cleaner and clearer image for precise medical diagnostics.

Product Applications

This versatile endoscope camera is perfectly suited for a wide range of medical applications, including laparoscopy, arthroscopy, ENT procedures, and general diagnostic endoscopy. Its high compatibility also makes it excellent for integration into telemedicine platforms, surgical recording systems, and real-time video conferencing for remote consultations and medical education.

Support and Services

We provide comprehensive support for the LN-HS26_1C, including driver-free plug-and-play operation for easy setup. Access detailed user manuals, software for OSD control (Cx3Button), and firmware updates on our website. Our dedicated technical support team is available to assist with integration and any operational queries.

Full Product Technical Specifications

Parameter	Specification
Model	LN-HS26_1C
Image Sensor	1/2.8" SONY CMOS
Effective Pixels	Approx. 2.16 Megapixels (1945H x 1109V)
Max Resolution & Frame Rate	1920 x 1080 (1080P) @ 60FPS
Scanning System	Progressive
Video Output Format	MJPG, YUV
Min. Illumination	Color: 0.017 LUX
Signal-to-Noise Ratio	> 42 dB
USB Interface	USB 3.0
Power Supply	DC 5V ±10% (via USB)
Operating Current	250mA ±10mA
Operating Temperature	-20°C to 60°C
Key Functions	One-Key AWB, Brightness, AGC, Backlight Comp., DNR, Sharpness, Mirror/Flip, Defog
Menu Languages	Chinese / English
